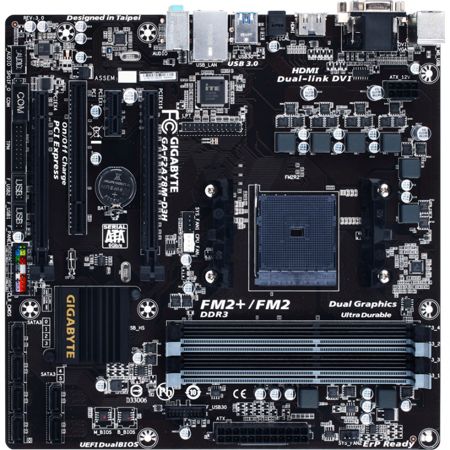

Gigabyte Ultra Durable 4 Plus GA-F2A78M-D3H Desktop Motherboard - AMD A78 Chipset - Socket FM2+ Item # 788422
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
788422
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
GIGABYTE FM2+ series motherboards based on AMD A78 chipset and feature the new FM2+ APU socket, and are designed to get the most from forthcoming Kaveri AMD APUs, while preserving compatibility for current AMD FM2 APUs. FM2+ AMD APUs offer native support for 8 GT/s PCI Express gen 3.0 as well as DX11.1 support integrating the high performance 'Steamroller' core. AMD socket FM2+ APUs also offer native support for 4K resolution displays on HDMI port.
Product Details
| Item # | 788422 |
| Manufacturer # | GAF2A78MD3H |
| Number of SATA Interfaces | 6 |
| Number of PS/2 Ports | 1 |
| Hardware Features | DualBIOS, Q-Flash, 3x USB Power Boost, All-Solid Capacitor motherboard Design, On/Off Charge, AMD Radeon Dual Graphics, AMD CrossFireX technology support, ESD Protection, AMD Eyefinity Technology, 4K Ultra HD ready, Ultra Durable 4 Plus, Triple Monitor |
| Power Supply Supported | ATX12V |
| Multi GPU Supported | Hybrid CrossFireX |
| Memory Speed Supported | 2.40 GHz (O.C.); 2.13 GHz; 1.87 GHz; 1.60 GHz; 1.33 GHz |
| S/PDIF | Yes |
| Compatible Processors | Athlon, A series |
| Number of Network (RJ-45) Ports | 1 |
| Number of DVI Outputs | 1 |
| BIOS Type | AMI |
| Internal Interfaces | 1 x SPDIF out - header ¦ 1 x audio - header ¦ 2 x USB 3.0 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x parallel - header |
| Graphics Controller Manufacturer | AMD |
| Onboard Parallel Header | Yes |
| Product Line | Ultra Durable 4 Plus |
| Audio Line In | Yes |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / JBOD |
| Number of PCI Express x16 Slots | 2 |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 3 |
| Graphics Memory Accessibility | Shared |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 1333 MHz, 1866 MHz, 2133 MHz, 2400 MHz (O.C.) |
| VGA | Yes |
| Max Processors Qty | 1 |
| RAID Supported | Yes |
| brand name | Gigabyte |
| Hardware Monitoring | CPU core temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection |
| Audio Channels | 7.1 |
| Number of USB 2.0 Ports | 4 |
| PS/2 Port | Yes |
| DVI | Yes |
| Memory Form Factor | DIMM |
| Processor Socket | Socket FM2+ |
| Chipset Model | A78 |
| Sound Controller Manufacturer | Realtek |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| Number of PCI Slots | 1 |
| Total Number of Onboard USB Ports | 6 |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Levels | 0; 1; 1+0; JBOD |
| HDMI | Yes |
| Processor Supported | A-Series; Athlon |
| BIOS Features | DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS |
| height | 1.2in. |
| Total Number of USB Ports | 6 |
| Number of PCI Express x1 Slots | 1 |
| Onboard Audio Header | Yes |
| width | 9.6 in |
| Number of Memory Slots | 4 |
| Sound Controller Model | ALC887 |
| depth | 9.6 in |
| Product Name | Ultra Durable 4 Plus GA-F2A78M-D3H (rev. 3.0) Desktop Motherboard |
| Audio Codec | Realtek ALC887 |
| manufacturer | GIGABYTE Technology, Inc |
| Number of S/PDIF Out Ports | 1 |
| Audio Line Out | Yes |
| weight | 2.67 lb |
| Max Size | 64 GB |
| Maximum Memory | 64 GB |
| controller type | Serial ATA/600 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Onboard Serial Header | Yes |
| Memory Standard | DDR3-2400/PC3-19200 (O.C.); DDR3-2133/PC3-17000; DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
| Graphics Memory Technology | DDR3 SDRAM |
| Number of Total Expansion Slots | 4 |
| Chipset Manufacturer | AMD |
| Memory Technology | DDR3 SDRAM |
| form factor | Micro ATX |
| Graphics Controller Memory | 2 GB |
| Number of HDMI Outputs | 1 |
| Number of Onboard USB 3.0 Ports | 2 |
| warranty length | 3-year limited |
| Onboard S/PDIF Header | Yes |
| model name | GA-F2A78M-D3H |
| Show More ▾ |
